The Lost Digit: Buk 3×2

May 3, 2016

By Bellingcat Investigation Team

Translations: Русский

cover_buk

Full report: (EN)  stock_save_pdf    (RU)  stock_save_pdf    (DE)  stock_save_pdf

In November 2014, Bellingcat published a report that identified the Buk TELAR (missile launcher) that downed Malaysian Airlines Flight 17 as “Buk 3×2,” originating from Russia’s 53rd Anti-Aircraft Missile Brigade of Kursk. The Buk was called 3×2 due to an obscured middle digit, which was not identifiable at the time of the report’s publication.

buk_compare

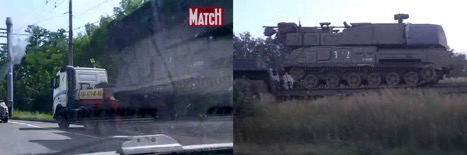

Left: Paris Match photo Right: Buk 3×2 in June convoy

missing_digit

The missing digit

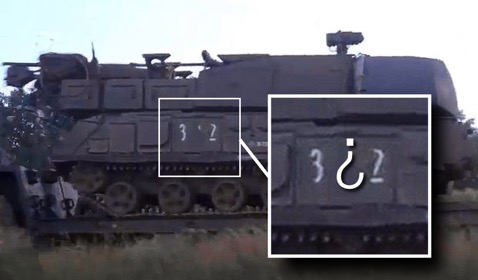

In a new report, we positively identify the middle digit of this Buk by matching seven characteristic features on Buk 3×2, including a unique dent on a side panel, the white marks on the chassis, and the cable arrangement connecting to the missile erector.

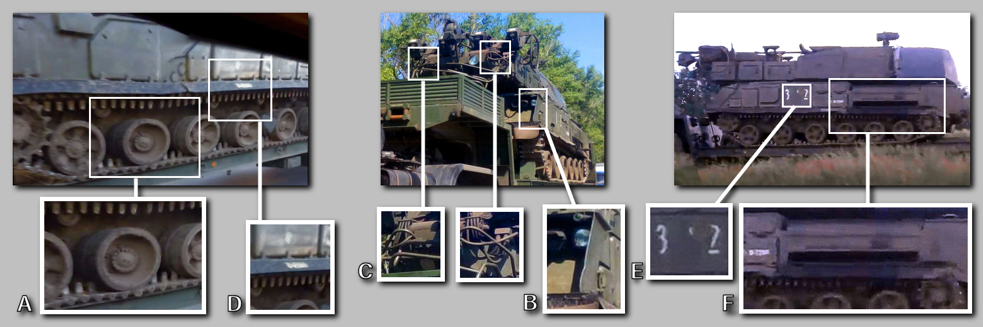

Features on Buk 3x2 that will be compared

Features on Buk 3×2 that will be compared

The middle digit is a three, thus identifying the number of the Buk that downed MH17 as “332” before the middle digit was obscured. In this new investigation, members of the Bellingcat investigation team collected and analyzed dozens of photographs of Buk TELARs that have been posted online by members of the 53rd Anti-Aircraft Missile Brigade since 2010.

telars

Buk TELARs 312, 322, and 332

The full report gives details on the process in determining that these three TELARs were the only possible candidates for identification. After comparing the seven unique features, Buk 332 was the only TELAR that had even one of these features in common with Buk 3×2 from materials recorded in Russia in June 2014 and eastern Ukraine on July 17 and 18, 2014. The seven examined features were: side skirt profile, wheel type (combination of hollow wheels and spoke wheels), dent in the left side panel, arrangement of cable connections to the missile erector, white mark on both side skirts, font and exact spacing of digits, and the shape and size of oil/soot deposits by exhaust

The full report, downloadable here, provides a detailed analysis of each of these seven features. This summary will compare a few of the most conclusive features.

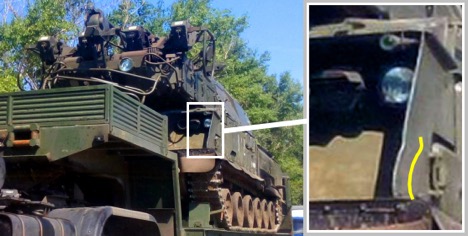

A high-quality photograph of Buk 3×2 taken in Alexeevka, Russia shows an inverted S-shape dent on the left panel.

3x2-dent

Clear photographs were available of this same left panel for Buks 312, 322, and 332. A comparison of the three panels below shows that Buk 332 has the identical dent on the panel:

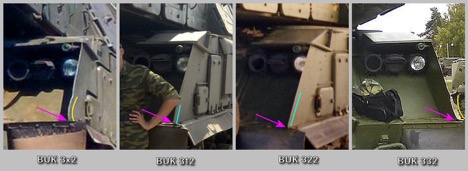

Comparisons of left panel dents on Buks 312, 322, and 332, along with 3x2

Comparisons of left panel dents on Buks 312, 322, and 332, along with 3×2

Another identifier for identifying the correct Buk is by studying the cable connections to the missile erector on the revolving turret. There are four cables on both the left and right side leading to the missile erector, providing us with eight cables to compare.

buk-cables

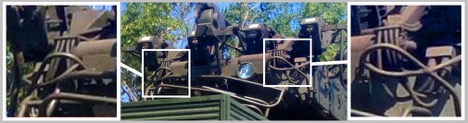

After studying a number of Buks, it becomes clear that there are different arrangements and lengths to the cables. In the following two figures, the cable connections of Buk 3×2 is compared to the ones of Buks 312, 322, and 332.

buk-cables-1

Here, on the right side, only Buk 332 shows a similarity to the cable arrangement of Buk 3×2. The blue-marked cable four is connected to the top plug on the turret chassis. Buk 312 and 322 show a different cabling, and cable four is connected to the bottom plug. Also, Buk 312, 322 and 332 show a distinct shape of the cabling, and only the shape of Buk 332 resembles that of the cabling of 3×2.

buk-cables-2

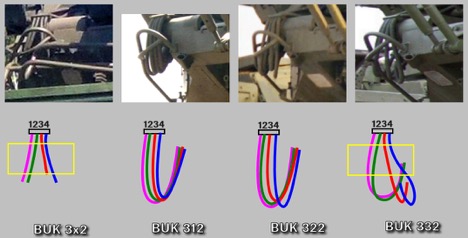

The comparison on the left side allows only a partial comparison. It is not possible to see the plugs on the turret chassis. However, Buk 332 shows the same distinct spread of the cabling in the middle that is also visible on 3×2.  Nothing comparable is visible on 312 or 322.

Taken individually, none of the seven identifying characteristics allows a definite identification. However, taken in sum, it becomes clear that Buk 332 is the only logical match for Buk 3×2.

features_table

Furthermore, comparing the features of Buk 3×2 in Russia and Buk 332 to the available materials of Buk 3×2 in Ukraine (called the “Separatist” Buk below) reveals that these three Buks are actually one in the same.

features_table2
Many of these features, such as spoke wheels and the H-2200 mark, do not or very rarely appear on Ukrainian Buks. In particular, the Buk TELARs of Ukraine’s 156th Anti-Aircraft Regiment, which was based near Luhansk, Donetsk, and Mariupol in 2014, do not share any visible similarities among the compared characteristics with Buk 3×2, either in Russia or Ukraine. We can say with confidence that on 17 July 2014, the Russian Buk TELAR numbered 332 of the 53rd Anti-Aircraft Missile Brigade based in Kursk was filmed and photographed in eastern Ukraine. This specific Buk, previously identified as Buk 3×2, was filmed moving to the center of the launch area estimated by the Dutch Safety Board for the missile that downed MH17.

Acknowledgments:

Credit should be given to various Russian-language online communities for helping to locate some of these materials and provide useful investigative leads. In particular, Bellingcat would like to recognize the efforts of the communities of flight-mh17.livejournal.com and forum.smolensk.ws for their efforts and keen eyes, particularly regarding the discoveries of the dent in the left panel of Buk 332 and details relating to the road wheels of Buk TELARs.

Bellingcat Investigation Team

The Bellingcat Investigation Team is an award winning group of volunteers and full time investigators who make up the core of the Bellingcat's investigative efforts.

Join the Bellingcat Mailing List:

Enter your email address to receive a weekly digest of Bellingcat posts, links to open source research articles, and more.

Support Bellingcat

You can support the work of Bellingcat by donating through the below link:
