New Images of the MH17 Buk Missile Launcher in Ukraine and Russia

January 17, 2015

By Eliot Higgins

Following the Bellingcat report Origin of the Separatists’ Buk, which showed that the Buk missile launcher linked to the downing of MH17 was filmed inside Russia a few weeks earlier, the Bellingcat investigation team has continued to search for additional information, and has recently discovered two more images of the Buk missile launcher linked to the downing of MH17.

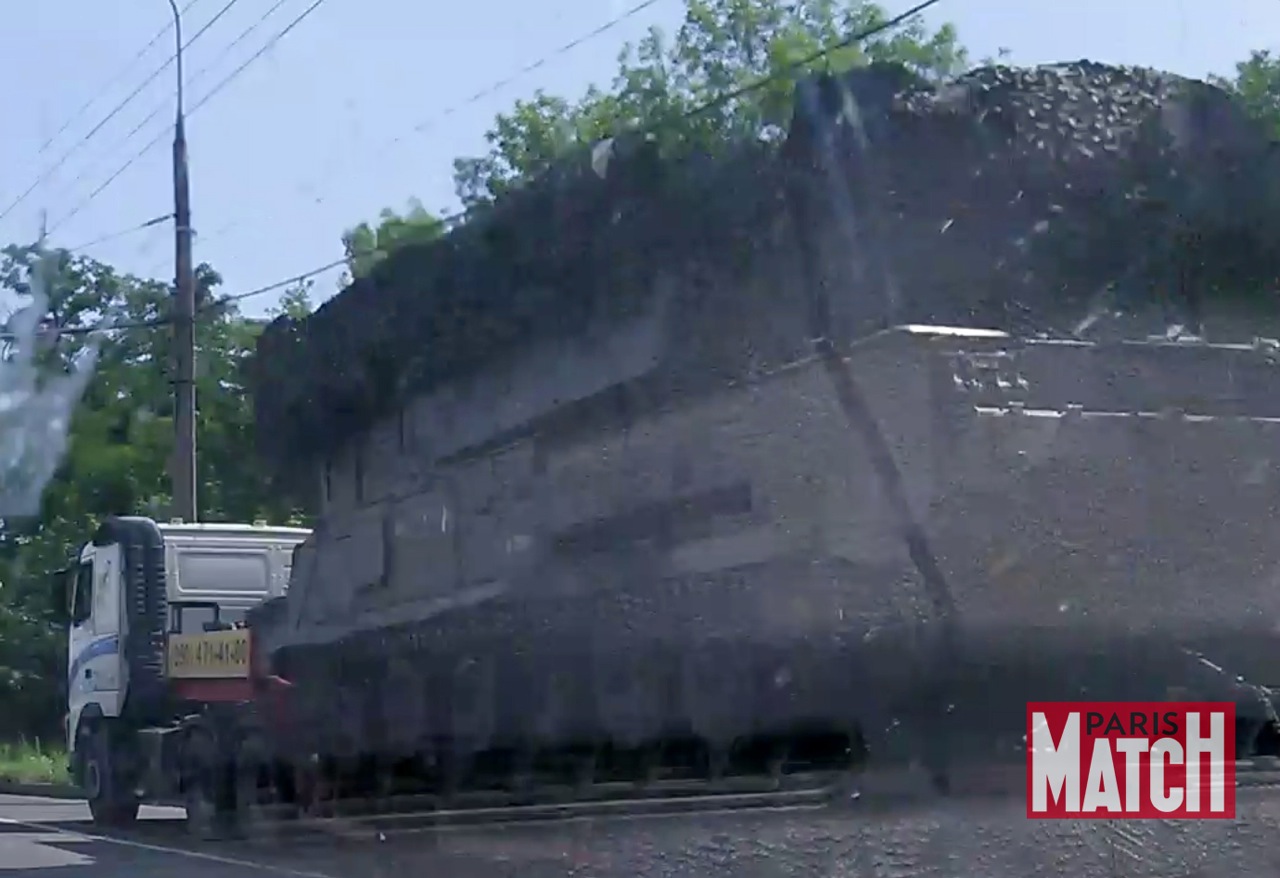

The first image is one that appeared recently in the print edition of Der Spiegel, which was part of their joint investigation with Correct!v into the downing of MH17, which included visiting the same sites Bellingcat identified as being part of the route the MH17 linked Buk missile launcher travelled along on July 17th. This image shows the Buk missile launcher travelling through separatist controlled Donetsk on the morning of July 17th:

PM2-BUK-Snijne17072014

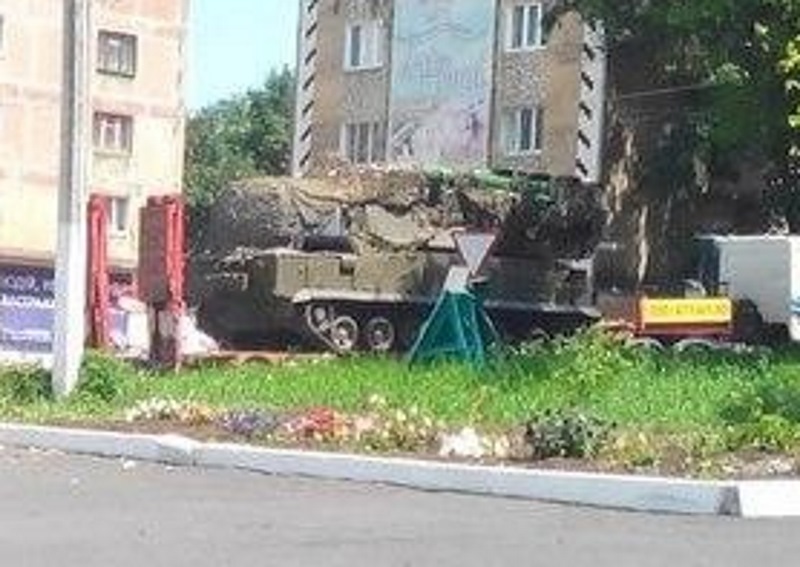

This image, provided by and reproduced with the permission of Paris Match, is the second of two images of the MH17 linked Buk missile launcher taken in Donestk, the first of which was published in Paris Match on July 25th. Here we can see much more of the Buk missile launcher, including the netting covering the rear of the Buk that was also visible in the photograph of the Buk missile launcher taken in Torez on July 17th:

Buk netting

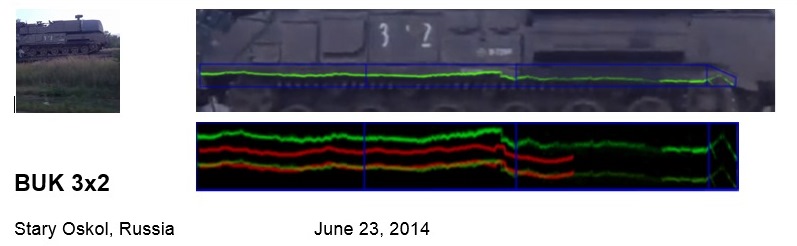

More importantly, details on the Buk yet again confirms this is the same Buk missile launcher filmed inside Russia in June. In the Bellingcat investigation Origin of the Separatists’ Buk the damage on the rubber side skirts of Buk missile launchers seen in Ukraine and Russia was examined and a match was found between the MH17 linked Buk missile launcher and a Buk filmed inside Russia referred to as Buk 3×2

Buk 3x2 comparison

However, in the original Paris Match photograph that was used to compare the side skirt damage the right-hand side of the side skirt was not visible. In this newly published photograph that area is visible, and it continues to match the side skirt damage seen on Buk 3×2 inside Russia. On the exhaust slot on the right-hand side there’s also a black mark visible above the exhaust that’s also visible in the new Paris Match photographer. The following video shows the matching features:

While it’s reasonable to assume some of these exhaust marks might be removed in a short period of time, it seems unlikely that they would build up in a few weeks without very heavy use, and the fact this is another element that matches between images of the Buk missile launcher in Ukraine and Russia cannot be dismissed as a mere coincidence.

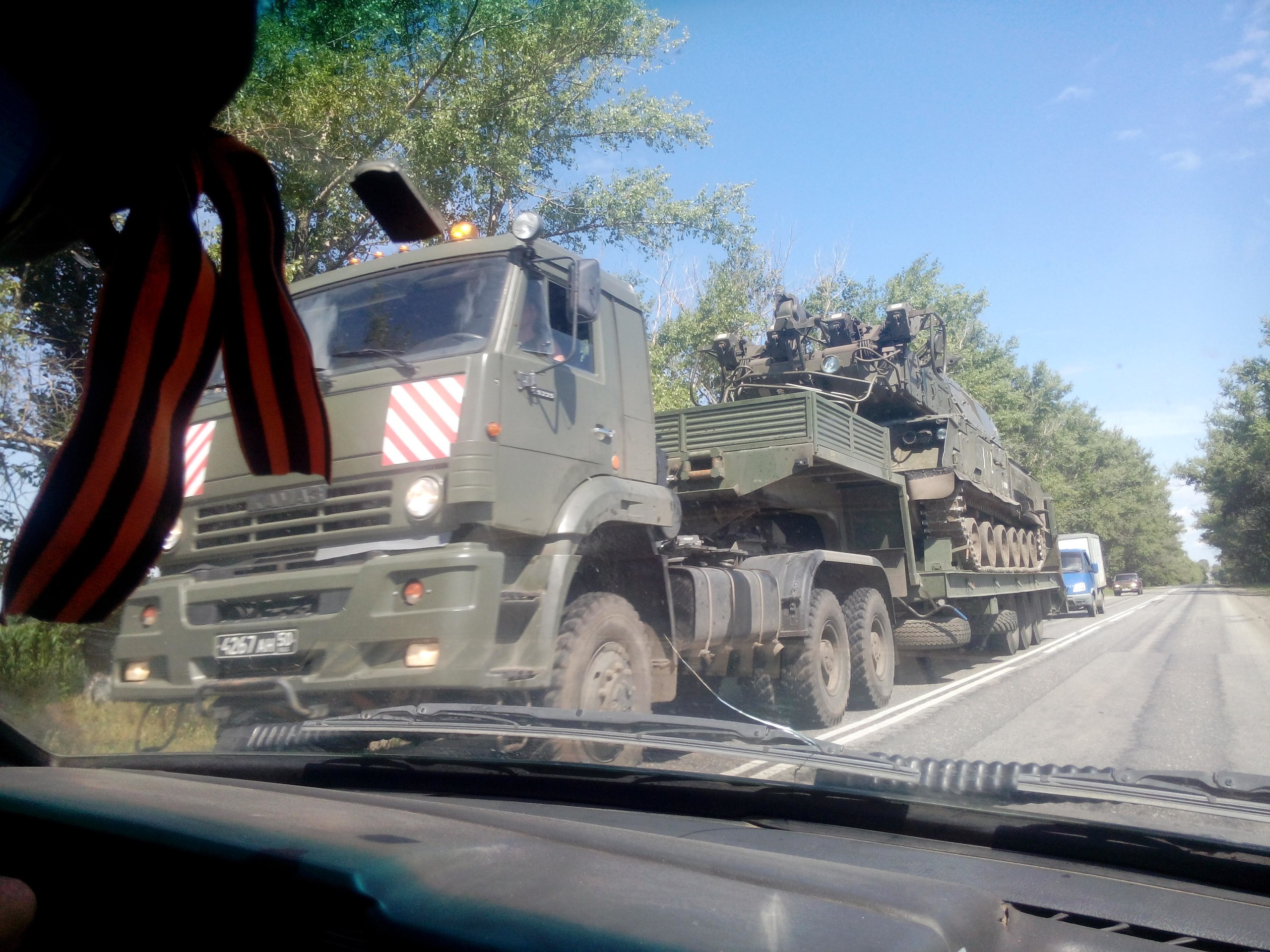

The second images uncovered by the Bellingcat investigation team is a new image of Buk 3×2 inside Russia, posted on VK.com in June to a page used by locals in the town of Alexeevka, southeast of Stary Oskol:

NtAx_E_cFSo

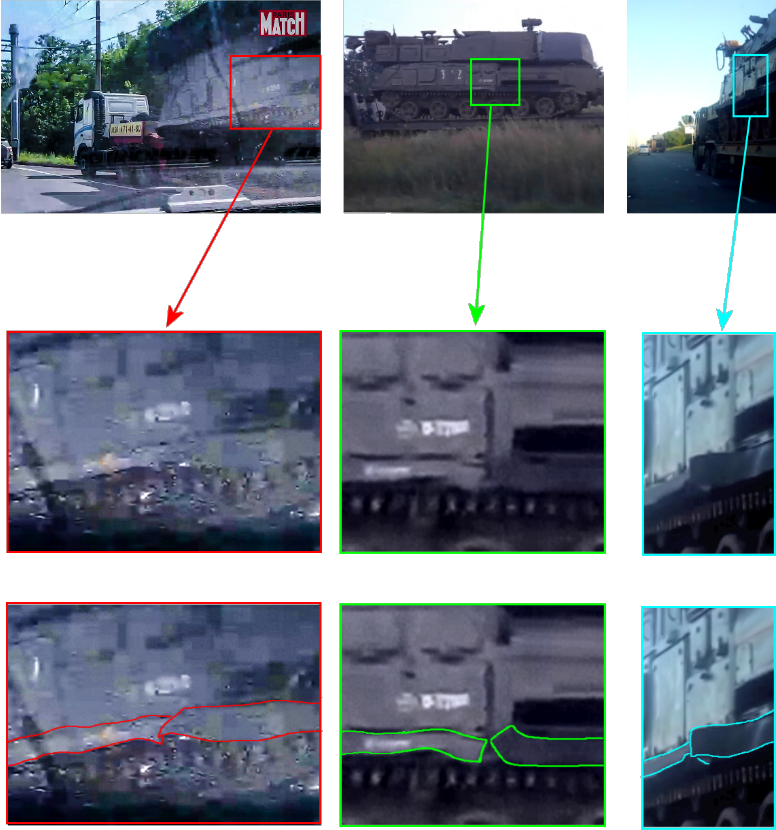

The time and location the photograph was taken fits with the route Bellingcat identified as travelled by the convoy containing Buk 3×2 towards the Ukrainian border in late June. In the earlier Bellingcat report it was noted there was a discrepancy between the comparison of the rubber side skirt of the Buk featured in the Paris Match photograph and the side skirt of Buk 3×2. This was a result of the skewing of the Paris Match image not being able to be correctly adjusted to take into account surfaces that were not flat, and we identified this discrepancy as being the result of major damage to the rubber side skirt:

22

What was particularly interesting about this damage is it seems while most rubber side skirts we examined on Buks from Ukraine and Russia had various dents, this level of damage is extremely rare, and this new photograph shows how severe the damage is to the rubber side skirt:

Buk skirt

Both of these new images, as well as the Correct!v investigation supports the earlier findings of the Bellingcat report Origin of the Separatists’ Buk that a Russian provided Buk missile launcher was filmed travelling through separatists held territory towards the alleged launch location of the missile that shot down flight MH17.

Eliot Higgins

Eliot Higgins is the founder of Bellingcat and the Brown Moses Blog. Eliot focuses on the weapons used in the conflict in Syria, and open source investigation tools and techniques.

Join the Bellingcat Mailing List:

Enter your email address to receive a weekly digest of Bellingcat posts, links to open source research articles, and more.

Support Bellingcat

You can support the work of Bellingcat by donating through the below link:
